Please print a bracket on Thingiverse.com of your choice PRIOR TO installation.

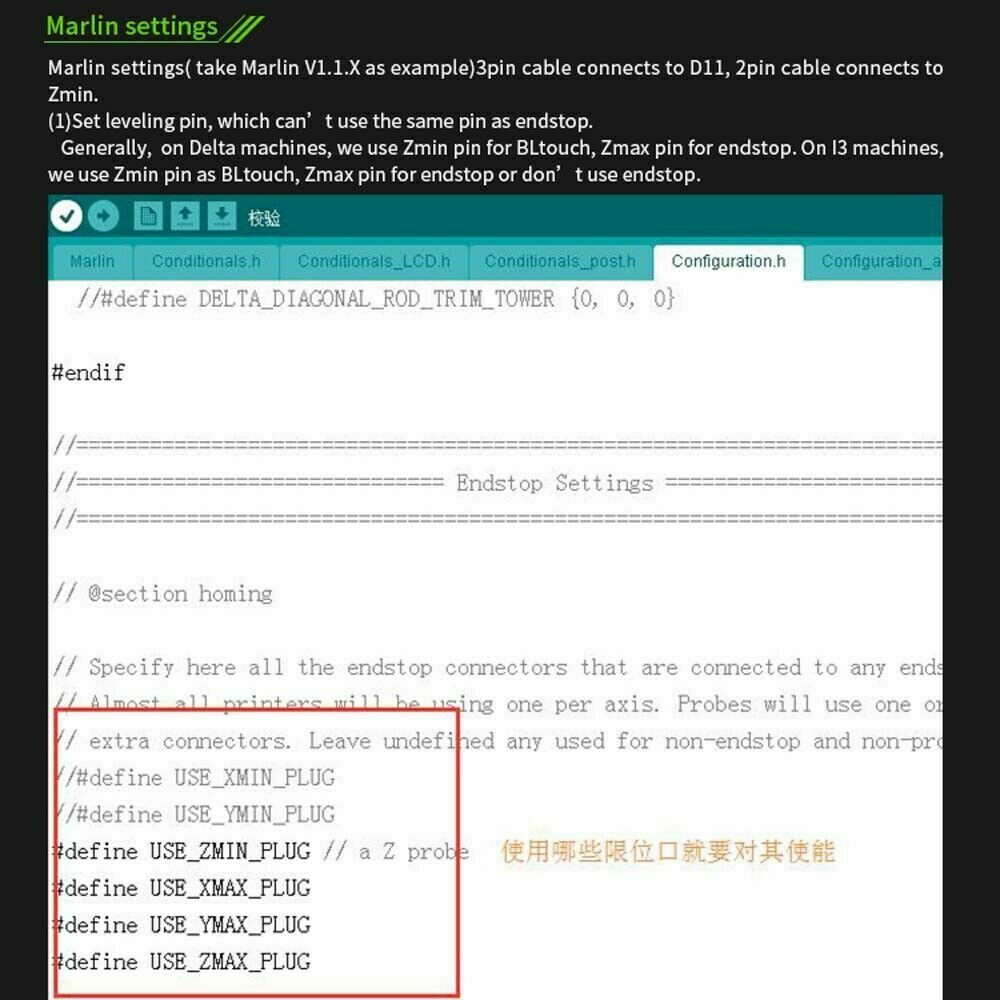

Replace Z limit switch wire on the mainboard with this auto-leveling sensor, re-flash the stock firmware to BL touch version.
Set up and SAVE Z step offset number and enjoy perfect leveling!!

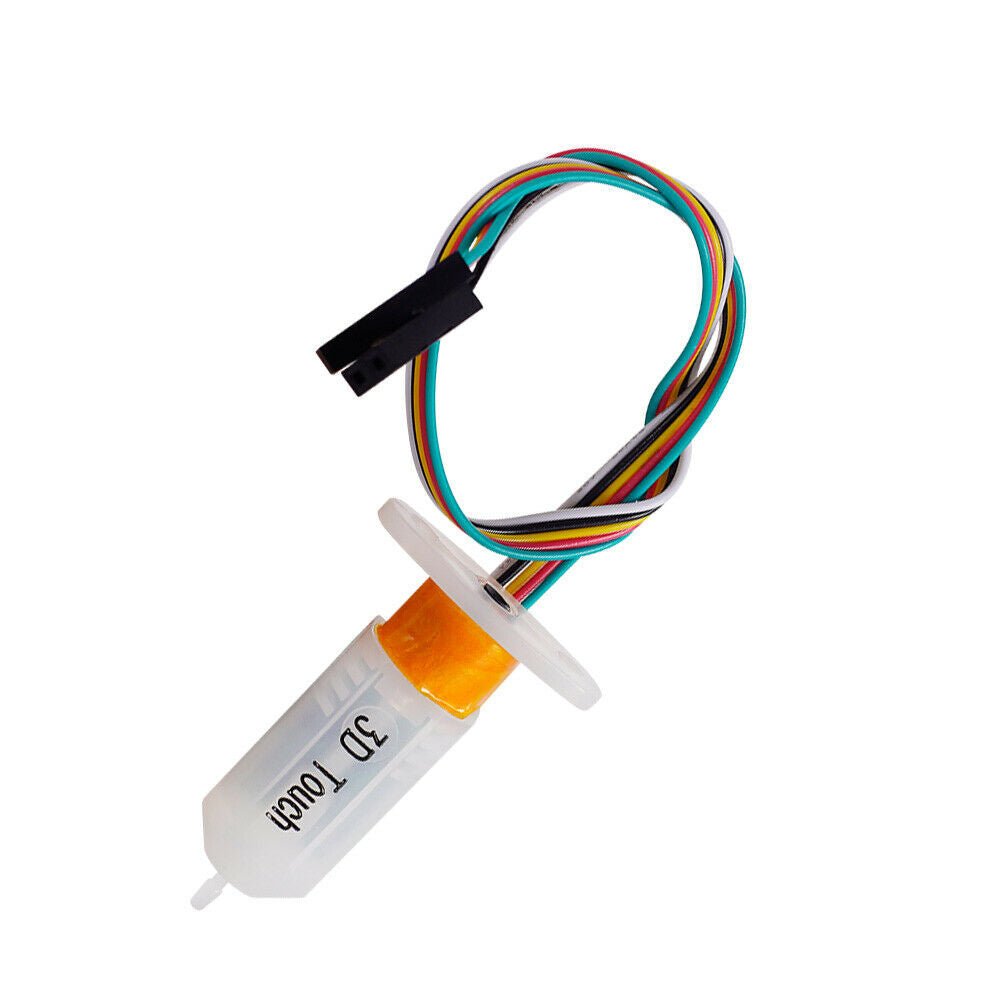

The 3D Touch is an affordable alternative to the original BLTouch probe. It is a high precision, touch-based bed leveling sensor intended for use with 3D Printers. It consists of an RC Servo and Micro Switch that maps the build surface, capable of achieving a perfect first layer every time.
Using the Hall Effect, it probes a defined number of points on the bed, then adjusts the Z-axis height during printing to compensate for variations in the surface. This makes it an ideal solution for warped or deformed build plates that are not perfectly flat.

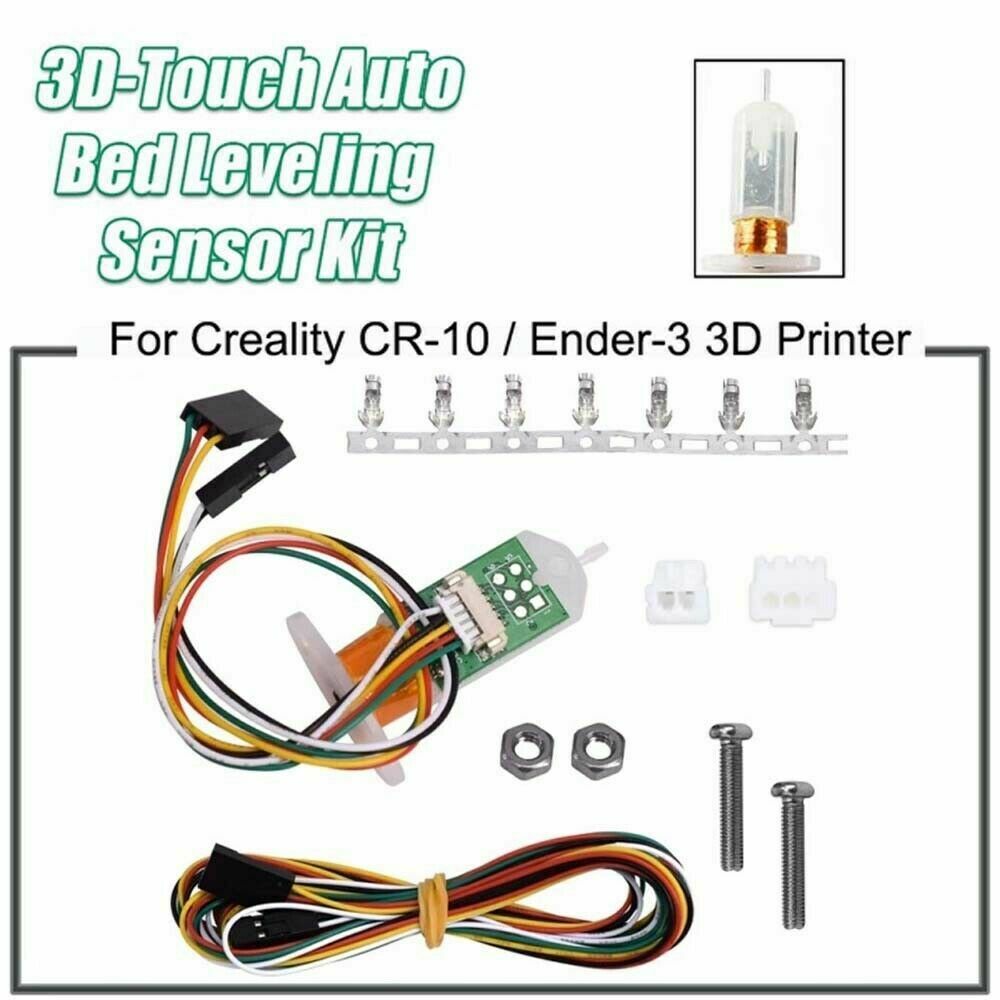

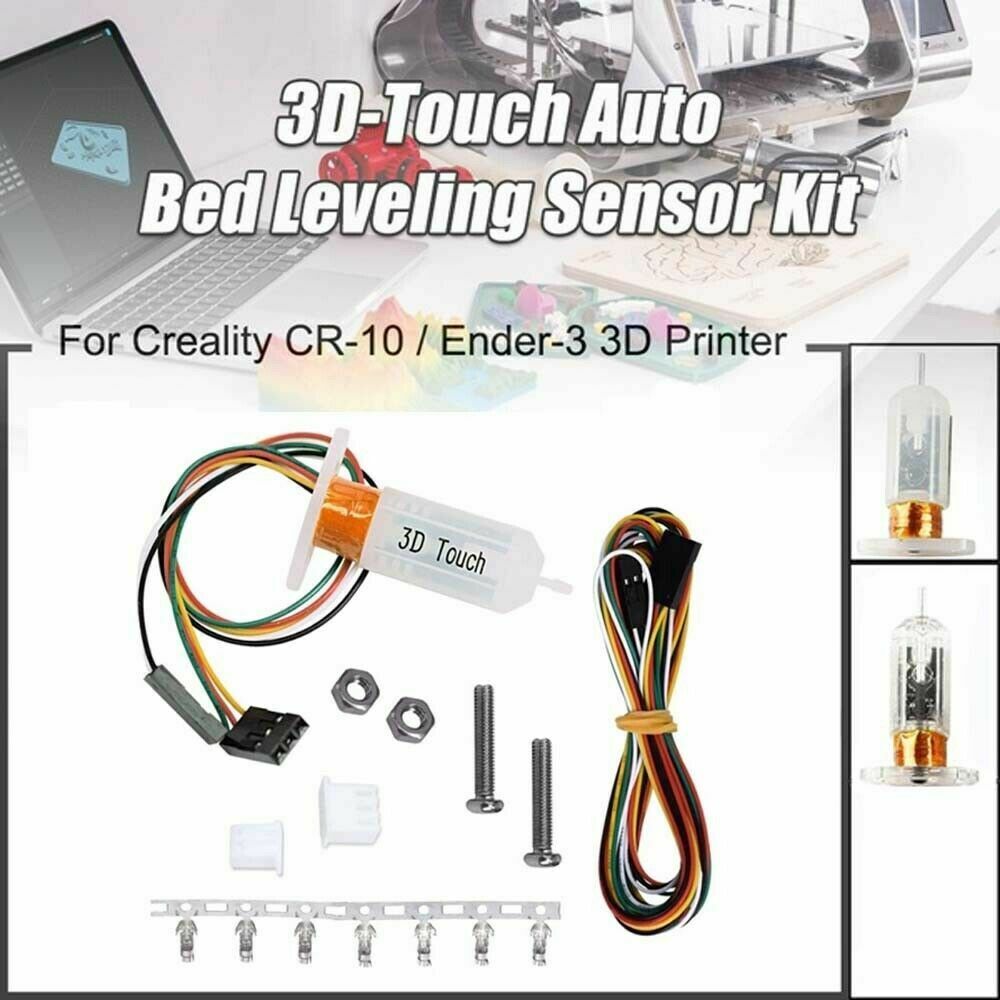

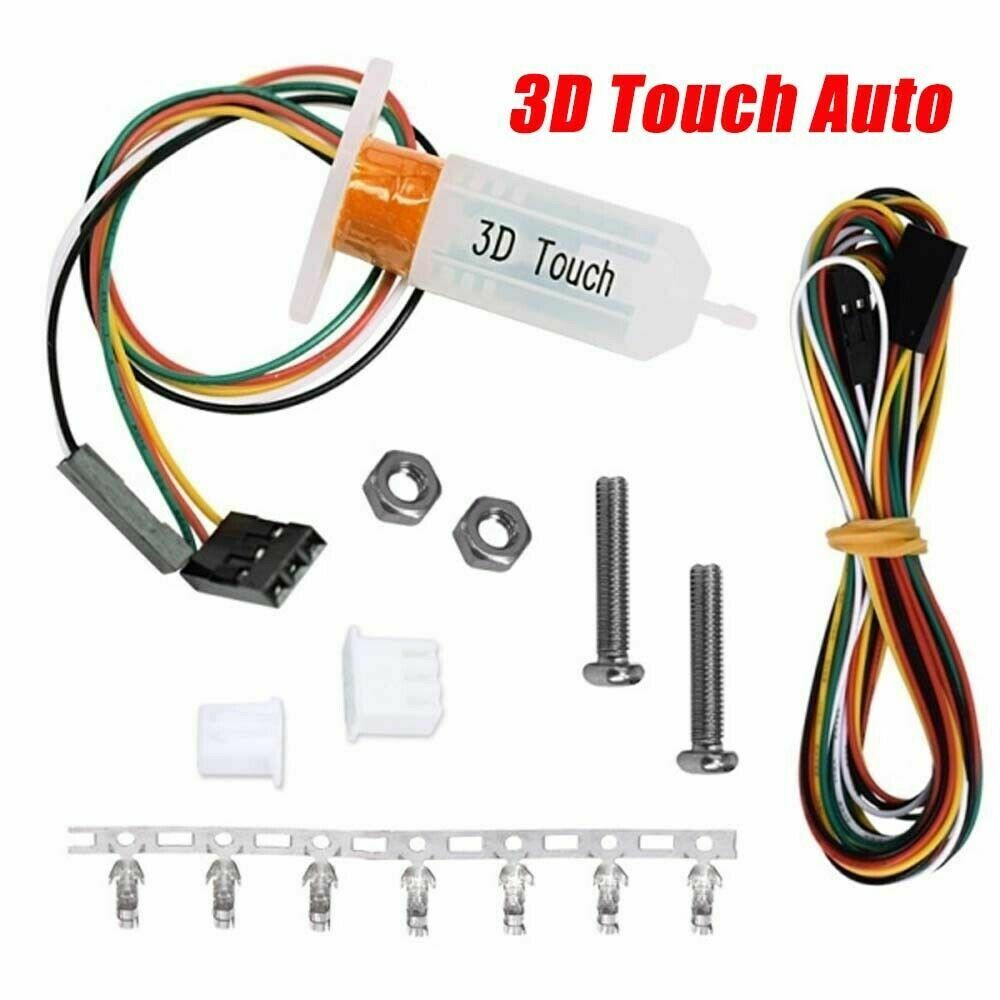

1 * 3DTouch Auto Bed Leveling Sensor
1 * 3-FT Wiring Harness
1 * Wiring Cables
2 * M3 Nuts, Bolts and Washers
2 * Coiling Terminals
